Discover the Oase ProfiClear Premium Compact-L Pond Filter! Enhance your pond's clarity and health with this efficient, easy-to-install solution.

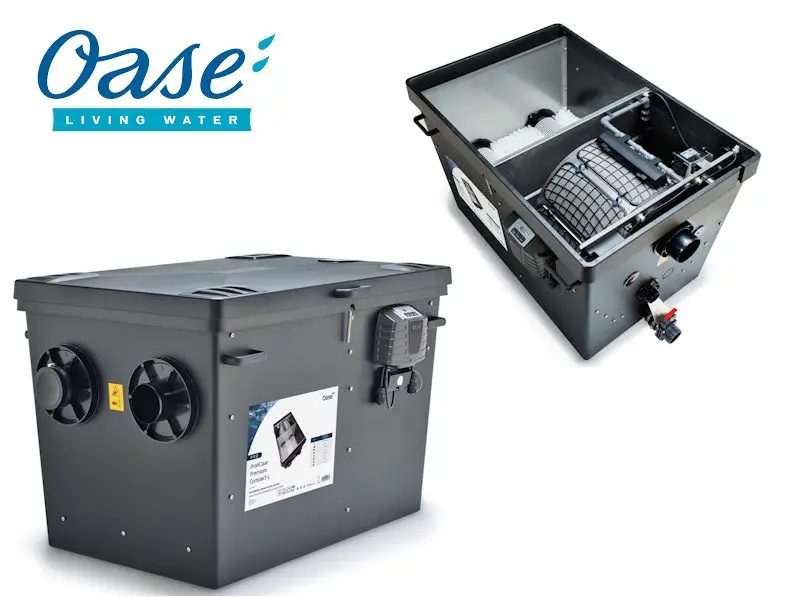

The Oase ProfiClear Premium Compact-L EGC is a top-notch filtration system designed for koi ponds and other water features. This innovative device combines a drum filter with a moving bed biological filter, offering excellent water clarity and quality.
The ProfiClear Premium Compact-L can handle ponds up to 30,000 litres for koi and 60,000 litres for goldfish, making it suitable for a wide range of pond sizes.
This advanced filtration system uses a 60-micron mesh drum to remove debris efficiently.
After the initial mechanical filtration, water flows through a fluidised bed process using Hel-X 13 media for optimal biological filtration.
The compact design of this unit allows for easy installation in tight spaces, whilst still providing professional-grade filtration performance.
The ProfiClear Premium Compact-L is available in both pump-fed and gravity-fed configurations, allowing for flexibility in setup based on individual pond requirements.
It can also be integrated with OASE Bitron UV clarifiers for enhanced algae control, creating a comprehensive water management system.
Key Takeaways
- The ProfiClear Premium Compact-L EGC offers high-performance filtration for koi and goldfish ponds
- It combines mechanical and biological filtration in a space-efficient design
- The system is customisable with pump-fed or gravity-fed options and UV clarifier integration
Overview of the Oase ProfiClear Premium Compact-L EGC
The Oase ProfiClear Premium Compact-L EGC is a powerful and efficient drum filter system for koi ponds and other water features. It combines mechanical and biological filtration in a compact design.
Key Features and Benefits
The ProfiClear Premium Compact-L EGC offers high separation performance for both pump-fed and gravity-fed setups. Its self-cleaning drum filter unit uses a fluidised bed process for optimal water movement and cleaning.
The system can handle water flow rates up to 20,000 litres per hour.
It uses depth filtration to remove particles as small as 60 micrometres. This ensures crystal-clear water and a healthy environment for fish.
A standout feature is the Moving Bed System with Hel-X 13 filter media. This provides a large biological filter surface for beneficial bacteria to colonise. The result is effective breakdown of harmful substances in the water.
Design and Build Quality
The ProfiClear Premium Compact-L EGC is built to last. Its drum is made of robust stainless steel, while the housing uses a combination of GRP (Glass Reinforced Plastic) and duroplast materials. This construction ensures durability and resistance to wear and tear.
The compact design is a key advantage. It requires minimal space for installation, making it suitable for smaller pond setups.
Despite its compact size, it doesn’t compromise on performance.
The unit features an EGC (Easy Garden Control) connection. This allows users to control settings via a smartphone app. It integrates seamlessly with other OASE products, offering a convenient and modern approach to pond management.
Installation and Setup
Setting up the Oase ProfiClear Premium Compact-L EGC requires careful planning and attention to detail. Proper installation ensures optimal performance of this advanced filtration system.
Site Requirements
The ProfiClear Premium Compact-L EGC needs a stable, level surface near the pond. The installation height above water level is 37 cm for pump-fed systems. This height is crucial for proper water flow and drainage.
The filter unit should be placed in a spot that allows easy access for maintenance.
It’s important to leave enough space around the unit for cleaning and servicing.
The area must be able to support the weight of the filled filter system. A concrete pad or sturdy platform is often ideal.
Connecting to Water Supply
The ProfiClear Premium Compact-L EGC features multiple inlets for flexible setup options.
For pump-fed systems, connect the pump outlet to one of the filter inlets.
Use appropriate pipe sizes to match the flow rate of your system. The max flow rate for this model is 20,000 l/h.
Ensure all connections are secure and leak-free. Use high-quality fittings and sealants designed for pond use.
Install valves on inlet and outlet pipes for easy maintenance and flow control.
Electrical Setup
The ProfiClear Premium Compact-L EGC requires a proper electrical connection. Always follow local electrical codes and safety regulations.
Use a ground fault circuit interrupter (GFCI) outlet to protect against electrical faults.
The unit operates on a rated voltage compatible with standard household power.
Place the control unit in a dry, sheltered location near the filter.
Ensure the cable length is sufficient to reach the power source without stretching.
Connect the drum motor, rinsing pump, and any additional components according to the manufacturer’s instructions.
Label all electrical connections for future reference.
Operational Mechanics
The Oase ProfiClear Premium Compact-L EGC utilises advanced filtration techniques to maintain clean pond water.
It combines drum filtration for removing solid particles with a moving bed system for biological filtration.
Understanding Drum Filtration
The self-cleaning drum technology is the first stage of filtration.
Water enters the drum, which has a fine mesh screen with 60-micron openings. This screen catches debris and particles as small as half the thickness of a human hair.
As water flows through, the drum rotates periodically. A row of nozzles sprays collected debris off the screen and into a waste trough.
This process is triggered by a sensor that detects water level changes or at set time intervals.
The drum’s self-cleaning feature ensures continuous efficient filtration. It prevents clogging and maintains optimal water flow through the system.
The Moving Bed Process
After drum filtration, water enters the moving bed chamber.
This area contains Hel-X 13 bio-media, which provides a large surface area for beneficial bacteria to colonise.
The media constantly moves in the water, creating ideal conditions for bacterial growth.
These bacteria break down harmful substances like ammonia and nitrites into less harmful compounds.
A scavenging pump keeps the bio-media in motion, ensuring even distribution of nutrients and oxygen.
This deep bed filtration process is crucial for maintaining a healthy pond ecosystem.
The combination of mechanical and biological filtration in one unit makes the ProfiClear Premium Compact-L EGC highly effective for both koi and ornamental ponds.
Control and Maintenance
The Oase ProfiClear Premium Compact-L EGC offers advanced digital control and requires minimal upkeep. Its smart features and simple maintenance routines keep the filter running smoothly.
Digital Control Module
The ProfiClear Premium Compact-L EGC comes with a sophisticated digital control system.
This module allows users to monitor and adjust filter settings easily.
The microcontroller displays real-time water temperature and filter status.
Users can set cleaning cycles and monitor system performance from the control unit.
The digital interface is user-friendly, with clear menus and easy-to-read screens.
An automatic self-cleaning function keeps the drum filter clear of debris.
The control module triggers the automatic rinsing system at preset intervals or when sensors detect reduced flow.
Routine Maintenance Tips
Despite its advanced features, the ProfiClear Premium Compact-L EGC still needs some basic care. Regular checks help ensure optimal performance.
Weekly tasks:
- Inspect the drum filter for any trapped debris
- Check the pump and UV clarifier for proper operation
- Monitor water parameters like pH and ammonia levels
Monthly tasks:
- Clean the moving bed media
- Examine seals and connections for leaks
- Lubricate moving parts as needed
Seasonal maintenance includes winterising the system in cold climates.
Drain water from pipes and the filter housing to prevent freezing damage.
Always follow the manufacturer’s guidelines for cleaning products and maintenance schedules. Proper care extends the life of the filter and keeps pond water crystal clear.
Technical Specifications
The Oase ProfiClear Premium Compact-L EGC boasts impressive dimensions and performance capabilities. It offers efficient filtration for ponds up to 120,000 litres.
Dimensions and Weights
The ProfiClear Premium Compact-L EGC measures 1370 mm in length, 891 mm in width, and 815 mm in height.
This compact design allows for easy installation in smaller spaces.
The filter’s net weight is not specified in the search results, but it is designed to be manageable for setup and maintenance.
Performance Data
This filter system has a maximum flow rate of 20,000 litres per hour.
It uses a drum filter unit with fluidised bed technology for optimal water movement and cleaning.
The power consumption varies:
- 5W during normal operation
- 870W while cleaning
The ProfiClear Premium Compact-L EGC offers high separation efficiency with depth filtration up to 60 µm.
It uses Hel-X 13 bio-elements for improved biological filtration.
OASE provides a Clear Water Guarantee when the filter is paired with the proper pump and UVC clarifier.
Filter Media and Aeration
The ProfiClear Premium Compact-L EGC uses advanced filter media and aeration to maintain pristine water quality.
These key components work together to remove waste and promote beneficial bacteria growth.
Choosing the Right Media
The ProfiClear Premium Compact-L EGC comes pre-loaded with Hel-X 13 biomedia.
This specialised media has a large surface area that supports colonies of beneficial bacteria.
These microorganisms break down harmful ammonia and nitrites in the water.
Hel-X 13 is made of durable plastic that won’t break down over time.
Its unique shape allows water to flow through easily whilst trapping debris. The media floats freely in the moving bed chamber, increasing contact with the water.
For optimal performance, it’s crucial to use the correct amount of media. The ProfiClear Premium Compact-L EGC comes with the ideal quantity pre-installed.
Aeration and Its Importance
Proper aeration is vital for the health of pond inhabitants and the efficiency of biological filtration.
The ProfiClear Premium Compact-L EGC features pre-installed aeration in the moving bed chamber.
This built-in system ensures a constant supply of oxygen to the Hel-X 13 media.
Oxygen is essential for the beneficial bacteria to thrive and break down waste effectively.
The aeration also keeps the media in constant motion, preventing clogging and maximising its surface area.
For additional aeration, the filter can be connected to an external air pump like the AquaOxy 2000. This boosts oxygen levels in the pond, supporting fish health and enhancing filtration performance.
Compatibility and Upgrades
The Oase ProfiClear Premium Compact-L EGC offers versatile compatibility options and potential for enhancements.
This filter system accommodates various pond setups and can be customised with additional components.
Pond Compatibility
The ProfiClear Premium Compact-L EGC is suitable for ponds of different sizes and types.
It can be installed as either a pump-fed or gravity-fed system, providing flexibility for different pond configurations.
For pump-fed setups, the filter can handle a maximum flow rate of 20,000 litres per hour. In gravity-fed installations, it can manage up to 25,000 litres per hour.
The filter’s compact design allows for easy integration into existing pond systems. It requires minimal space, making it ideal for smaller ponds and koi ponds.
Accessorising and Enhancements
The ProfiClear Premium Compact-L EGC can be enhanced with various accessories to improve its performance.
One notable upgrade is the integration of UVC clarifiers.
Compatible UVC models include the Oase Bitron 72C – 110C and Bitron 120W – 240W.
These clarifiers mount directly to the filter’s inlet side, eliminating algae and passing it through in a flocculated state for efficient entrapment.
The filter features a Moving Bed System, which uses a fluidised bed process for optimal water movement and cleaning.
This system can be further enhanced with additional biological media to increase filtration capacity.
For improved control, the ProfiClear Premium Compact-L EGC can be connected to an EGC controller.
This allows for centralised management of up to 10 EGC-compatible products, enhancing overall pond system efficiency.
Pond Health and Water Quality
The Oase ProfiClear Premium Compact-L EGC plays a crucial role in maintaining optimal pond conditions.
It helps achieve crystal-clear water and promotes beneficial bacteria growth, essential for a thriving aquatic ecosystem.
Achieving Crystal-Clear Water
The ProfiClear Premium Compact-L EGC uses advanced drum filter technology to remove debris and particles as small as 60 microns.
This high separating capacity ensures exceptionally clear water in ponds up to 120,000 litres.
For koi ponds up to 35,000 litres and goldfish ponds up to 70,000 litres, the system maintains pristine water quality.
The filter’s self-cleaning mechanism prevents clogging, ensuring consistent performance.
Regular use of this filter helps reduce algae growth by removing excess nutrients. This leads to improved water clarity and a healthier environment for fish and plants.
Promoting Beneficial Bacteria
The ProfiClear Premium Compact-L EGC features a moving bed biological filter that supports beneficial bacteria growth.
These microorganisms are vital for breaking down harmful substances like ammonia and nitrite.
The filter’s design maximises surface area for bacterial colonisation.
This helps establish a robust biological filtration system, crucial for maintaining a balanced ecosystem in koi and goldfish ponds.
The fluidised bed within the filter keeps bacteria constantly moving.
This increases their efficiency in processing waste and helps prevent ‘dead spots’ where harmful substances might accumulate.
Advanced System Integration
The Oase ProfiClear Premium Compact-L EGC offers seamless integration with other Oase systems and smart control options.
These features enhance the filter’s performance and make pond maintenance easier for users.
Integrating with Oase Systems
The ProfiClear Premium Compact-L EGC works well with other Oase products.
It can be connected to various Oase devices using the Easy Garden Control (EGC) system.
This allows for centralised management of pond equipment.
Users can link the filter to Oase pumps, UVC clarifiers, and aerators.
The EGC system enables these devices to communicate and work together efficiently.
This integration helps maintain optimal water quality and reduces energy use.
Smart Control Options
The ProfiClear Premium Compact-L EGC offers advanced control through the Oase Inscenio FM-Master WLAN EGC. This smart controller allows users to monitor and adjust the filter’s settings remotely.
With the FM-Master WLAN EGC, pond owners can:
- Check filter status in real-time
- Adjust cleaning cycles
- Monitor water temperature
- Control connected pumps and other devices
The controller connects to a smartphone app, giving users access to their pond system from anywhere.
This remote control feature makes pond maintenance more convenient and allows for quick responses to any issues.
